Floating Basin Essentials

Wall Mounted Marble Basin Small

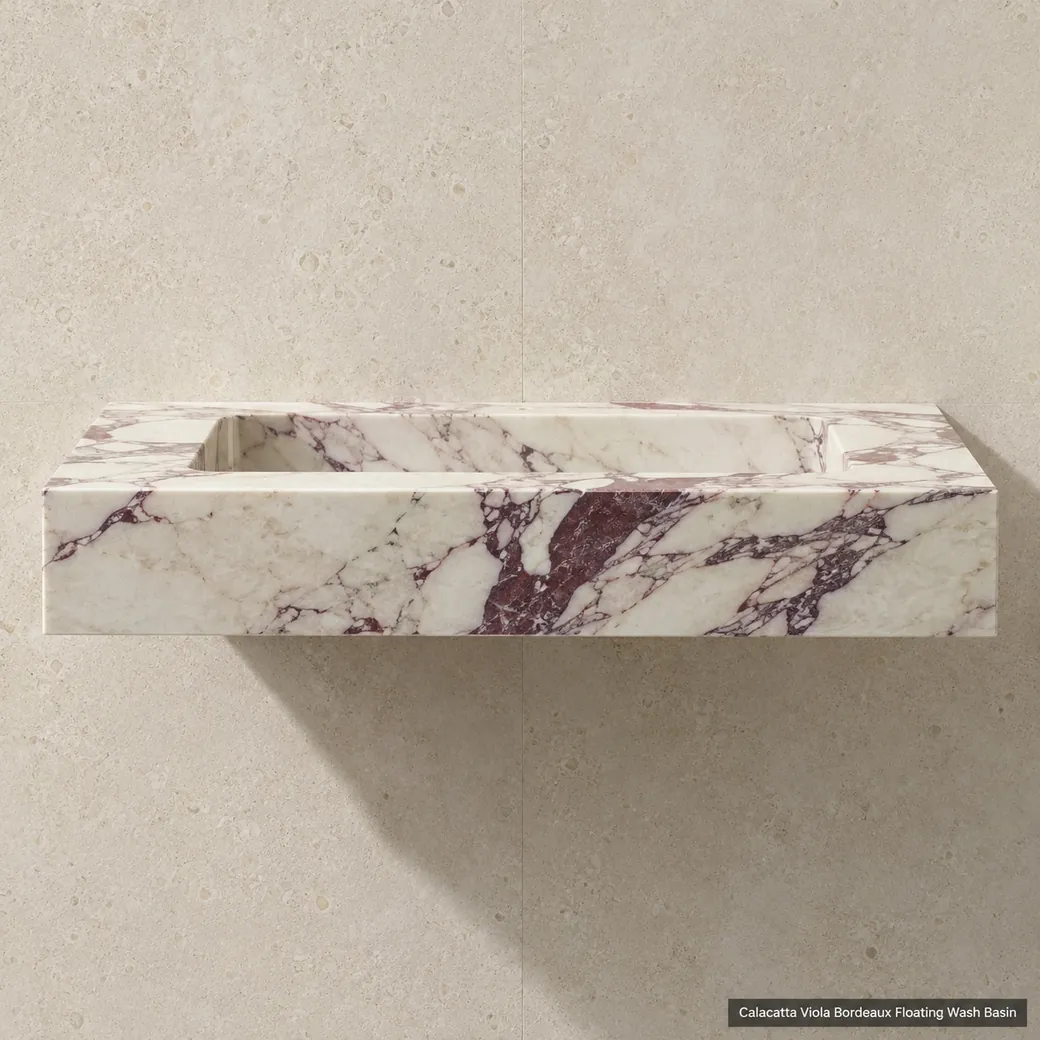

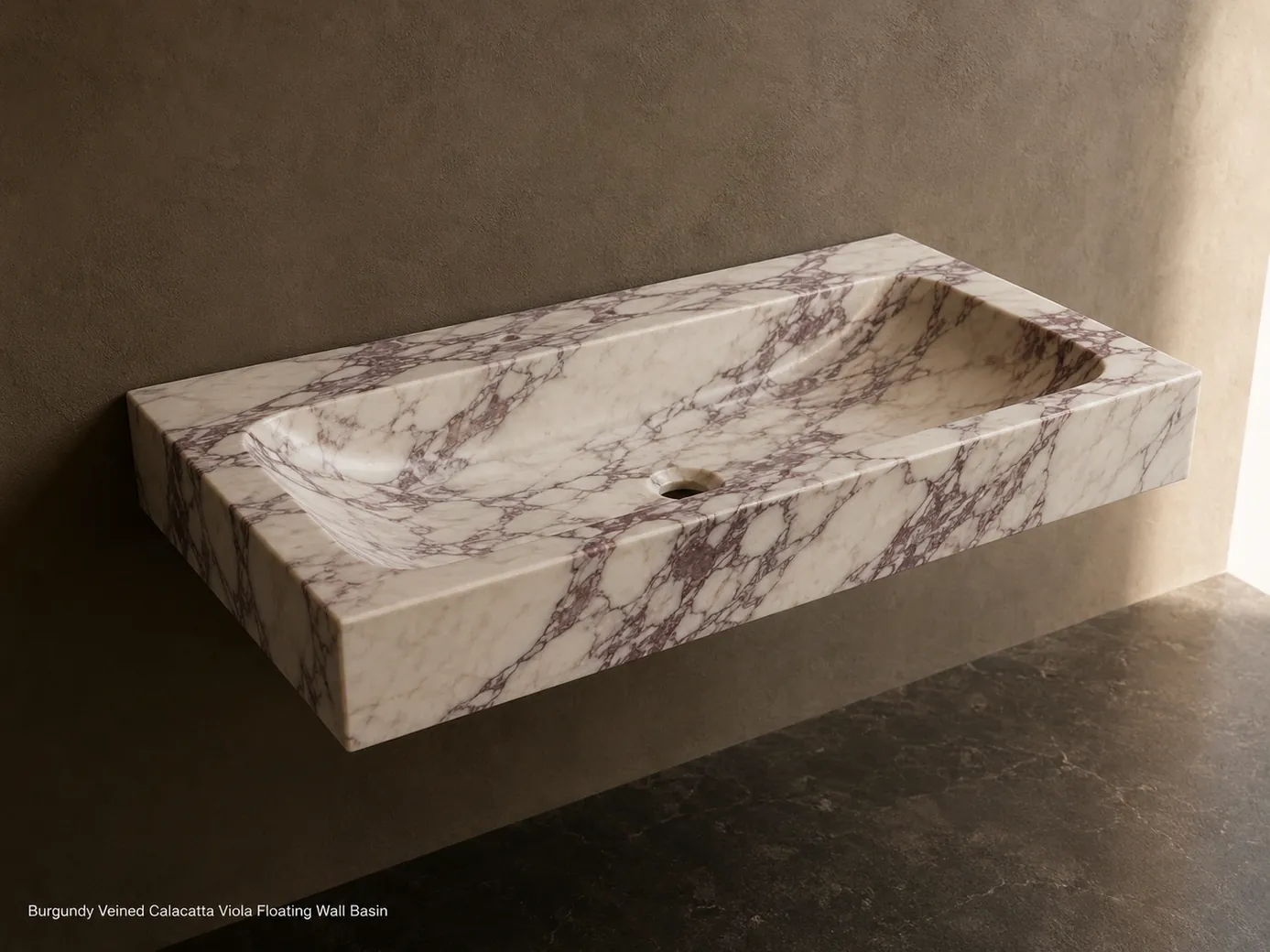

Floating Calacatta Viola wall-mounted basin in cream white marble with rich burgundy movement and satin honed finish.

A Wall Mounted Marble Sink or Floating Marble Basin is feasible when its weight is transferred into structural studs, blocking or an engineered support frame—not simply finish wallboard. Concealed brackets can carry the basin while plumbing routes through the wall beneath or behind it. Size and drilling can be customized, but support engineering comes first; afterward, seal if required and maintain the surface with pH-neutral cleaner.

Engineered Wall-Mount SystemStructural-Substrate AnchoringClear Floor SpaceCustom Tap & Waste LayoutLoad-Rated Brackets Required

Price AED 4,609

~~AED 5,121~~ InStock

SKU: RP-26-P7670
Material: Calacatta Viola Marble
Material type: Carrara-Region Calacatta Marble
Finish: Satin Honed Finish
Color: Cream White with Rich Burgundy Movement
Size: Small
Lead time: 335 - 5 Days
Minimum order: 1

Product profile

Material

Calacatta Viola Marble

Material type

Carrara-Region Calacatta Marble

Finish

Satin Honed Finish

Request quote Back to products

Product typeBathroom Fixture – Wall-Mounted Basin

MaterialCalacatta Viola Marble

FinishSatin Honed Finish

Dimensions60 × 40 × 15 cm

Lead time335 - 5 Days

Wall Support & Concealed Fixing

Engineering a Heavy Stone Basin to Float

A 30 kg solid-marble basin cannot be safely supported by decorative wall finishes alone; the hidden brackets must transfer load into structural masonry, studs or reinforced backing. For this 60 × 40 cm floating format, bracket position should also leave space for the drain and bottle trap while keeping plumbing visually discreet. Final fixing details should be resolved before wall closing, especially where custom stone thickness or a wall-mounted faucet changes the installation geometry.

Wall-mounted Calacatta Viola basin with concealed steel support visible behind the wall — Wall-mounted Calacatta Viola basin relies on concealed structural support for a clean floating appearance.

Wall Strength Comes First

What Supports a Floating Marble Basin

A 30 kg floating marble basin needs its weight transferred into structural material behind the finished wall, such as masonry, properly located studs with reinforced blocking, or an engineered steel support frame. Standard plasterboard or finish wallboard is only a surface lining and cannot safely provide the primary anchorage for a heavy stone fixture; brackets and fixings should therefore connect through the wall finish into structure capable of carrying the basin, water, fittings and normal service forces.

Hidden Installation

How a Wall-Hung Stone Sink Is Fixed

A wall-hung marble basin should transfer its 30 kg stone load into concealed brackets or a structural frame fixed to suitable wall structure, not into decorative wallboard. The brackets carry the basin while hot/cold supplies and waste pipe route through the wall behind or below it, allowing the finished installation to appear visually floating without leaving unsupported stone or exposed plumbing beneath.

Bracket Design

Concealed Supports for a Marble Wall Basin

Hidden brackets give a cleaner floating appearance, while exposed supports are easier to inspect; either must be engineered for the full stone load.

Wall Plumbing

Drainage Behind a Floating Calacatta Sink

Route the waste through the wall to a suitable bottle trap or concealed trap position while keeping future plumbing access possible.

Faucet Layout

Wall or Deck Tap for a Marble Console Basin

Faucet holes should be drilled only after confirming the fitting, with spout reach planned to clear the rim and direct water comfortably into the bowl.

Product at a Glance

Calacatta Wall-Mounted Basin Details

This basin uses Satin Honed Carrara-Region Calacatta Marble in Cream White with Rich Burgundy Movement, measuring 60 × 40 × 15 cm and weighing 30 kg. The wall-mounted format requires concealed or engineered structural support behind the finish wall so the stone load is transferred safely into the building structure.

Bracket Type	Pair of concealed AISI 304 stainless-steel cantilever basin brackets, anchored into structural backing.
Bracket Spacing	Approx. 400 mm center-to-center concealed bracket spacing across the 600 mm basin.
Anchor Bolt Diameter	M12 A4 stainless-steel chemical anchor bolts through each concealed bracket into engineered structural backing, sized for the 30 kg stone basin plus service load.
Wall Blocking Depth	Minimum 100 mm-deep solid timber or engineered steel blocking between structural studs, sized to receive the concealed basin brackets and M12 anchors.
Basin Bearing Surface	Two continuous 100 mm-deep reinforced underside bearing zones aligned above the concealed brackets, separated from metal by 3 mm neoprene pads.
Internal Bowl Depth	Approx. 100 mm usable internal bowl depth within the 150 mm overall basin height, maintaining sufficient stone below the waste.
Waste Opening Diameter	Ø45 mm waste opening at the bowl’s lowest point, compatible with a standard 1¼-inch basin waste.
Overflow Provision	Concealed rear overflow channel terminating at a standard overflow-compatible waste, with an approximately Ø22–24 mm overflow opening positioned below the rear rim.
Rear Plumbing Chase	Approx. 120 mm-high × 80 mm-deep continuous rear plumbing chase within the basin back zone for waste and supply connections.
Wall Sealant Joint	Continuous 3–4 mm mould-resistant sanitary silicone joint between the 600 mm rear edge and finished wall, accommodating minor movement while preventing water penetration.

Professional Installation

Preparing a Wall for a Heavy Stone Washbasin

Install structural blocking or a designed steel carrier between studs before closing the wall, positioned to match the concealed bracket and anchor layout for the 30 kg basin plus service loads. Coordinate the waste and supplies within the rear chase, complete mechanical fixing into structure rather than wallboard, and retain accessible plumbing connections below or behind the basin.

Space Without Floor Bulk

Why Choose a Floating Marble Sink

A floating marble sink keeps the floor area visually open and removes the need for a vanity cabinet beneath the basin. Concealed brackets can carry the stone when fixed into suitable structure, plumbing can route through the wall, and basin width, drilling and waste positions can be customized once the support system has been engineered.

Clear Floor Space
Wall-mounted support keeps the floor beneath the basin open, improving visual space and easier floor access.
Concealed Structural Support
Concealed brackets or an engineered wall frame support the heavy basin without visible floor-standing structure.
Custom Wall Width
Basin width can be custom fabricated to match the available wall span while maintaining the required structural support.
Integrated Stone Character
Rich burgundy movement runs through the cream-white Calacatta body, making the floating basin read as an integrated natural-stone feature.

Stone Care

Maintaining a Wall-Hung Calacatta Basin

A wall-hung Calacatta basin should be assessed periodically to determine whether sealing is needed for stain protection, with the satin-honed surface cleaned only using pH-neutral stone products. Avoid acidic sprays that can dull the marble, especially when the basin forms part of a coordinated wet-area specification that may also include stone shower bases.

Wall-hung Calacatta basin with concealed structural support, sealing assessment and pH-neutral care — Wall-hung Calacatta basin shown with concealed support, sealing assessment and pH-neutral maintenance.

Technical Overview

Wall-Mounted Stone Basin Specifications

Review the wall-mounted basin specifications for bracket design, wall requirements, drain and tap locations before installation. These fields help you verify that the basin load transfers into suitable structure rather than decorative wall finishes alone.

Product details

Specifications, care, delivery and FAQ

Everything is rendered from product JSON fields so the page remains SEO-ready even before JavaScript runs.

SpecificationsProduct size, material, finish and commercial details.

BrandRoar Panther

SKURP-26-P7670

MaterialCalacatta Viola Marble

Material typeCarrara-Region Calacatta Marble

FinishSatin Honed Finish

ColorCream White with Rich Burgundy Movement

SizeSmall

Dimensions60 × 40 × 15 cm

Weight30 kg

AvailabilityInStock

Lead time335 - 5 Days

Minimum order quantity1

Product GroupWall Mounted Marble Basin

VariantWall Mounted Marble Basin Small

SkuRP-26-P7670

Material TypeCarrara-Region Calacatta Marble

Lead Time335 - 5 Days

Minimum Order Qty1

Best Usecreating a floating bathroom vanity appearance, preserving open floor space in compact bathrooms, serving luxury powder rooms and hotel washrooms, pairing with concealed structural brackets, providing an accessible minimalist Calacatta Viola washbasin

Care guideCleaning and handling notes for this stone product.

Shipping and order notesLead time, delivery and custom order information.

FAQCommon questions about this product.

What type of concealed bracket or engineered support frame can safely carry this 30 kg wall-mounted Calacatta Viola basin without visible supports beneath it?

Use a concealed welded stainless-steel support frame or heavy cantilever brackets anchored into reinforced concrete, solid block with engineered chemical anchors or structural wall framing; the frame should carry the 30 kg basin plus water and user-imposed loads independently of decorative sealant, and must be designed and load-tested by a qualified fabricator or engineer before the wall is closed.

How deep and strong must the concealed wall blocking be before tiling for a wall-mounted marble basin?

The concealed blocking must span structural studs or be integrated into an engineered steel carrier capable of supporting the 30 kg basin plus water, fittings and an appropriate safety factor. For timber framing, solid structural-grade blocking commonly fills the full stud depth and extends across at least two studs; exact thickness, anchor size and bracket spacing must be determined from the wall construction and bracket manufacturer before waterproofing and tiling conceal the support.

After the floating marble basin is fixed to its structural frame, how can the trap, supply valves and mounting hardware remain accessible for future maintenance?

Future access should be provided through a removable underside panel, concealed service hatch in the adjacent wall or accessible cabinet zone, depending on the basin design. The trap, isolation valves and frame fasteners must remain reachable without removing the stone, while the structural frame should allow panels to detach independently of the basin’s load-bearing fixings.

How far can a wall-mounted marble basin project from the wall before legs or additional concealed support become necessary?

There is no universal safe projection, because capacity depends on bracket length, wall construction, stone geometry and fixing strength, but this 40 cm-deep, 30 kg basin is already at a depth where full-length concealed steel arms or a welded frame should support most of its underside. Brackets should extend close to the front load zone rather than ending near the wall, and additional support becomes necessary if the basin projects farther, has narrow wall contact or could be leaned upon. Legs are not automatically required when a structural engineer verifies a properly anchored frame, but ordinary countertop brackets fixed into finish wallboard are unsuitable.

Can the Wall Mounted Marble Basin be detached later for repair or replacement without breaking the stone, structural frame or finished wall cladding?

Later removal is possible if the basin uses accessible mechanical fixings on an independent structural frame and flexible perimeter sealant rather than permanent adhesive bonding to the finished wall. Provide removable underside or adjacent access panels, isolate the cladding from load-bearing hardware and document the disassembly sequence at installation.
